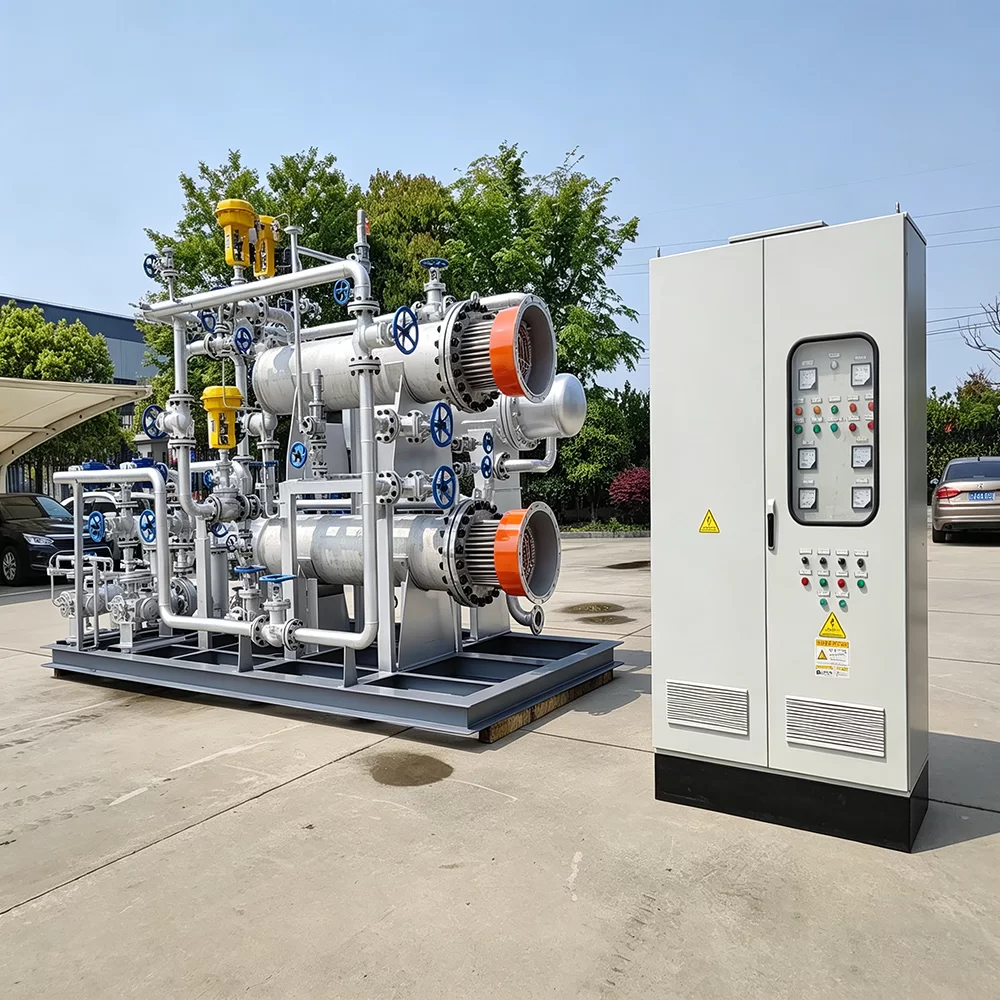

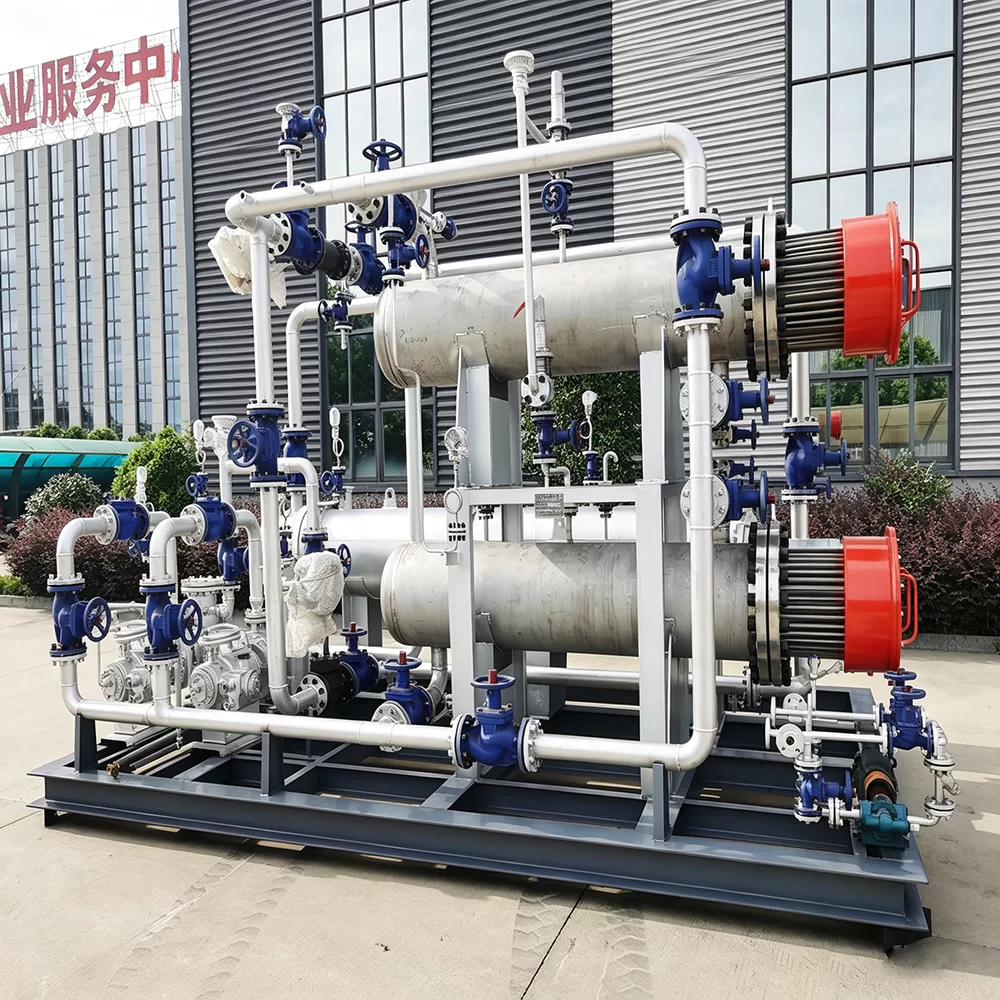

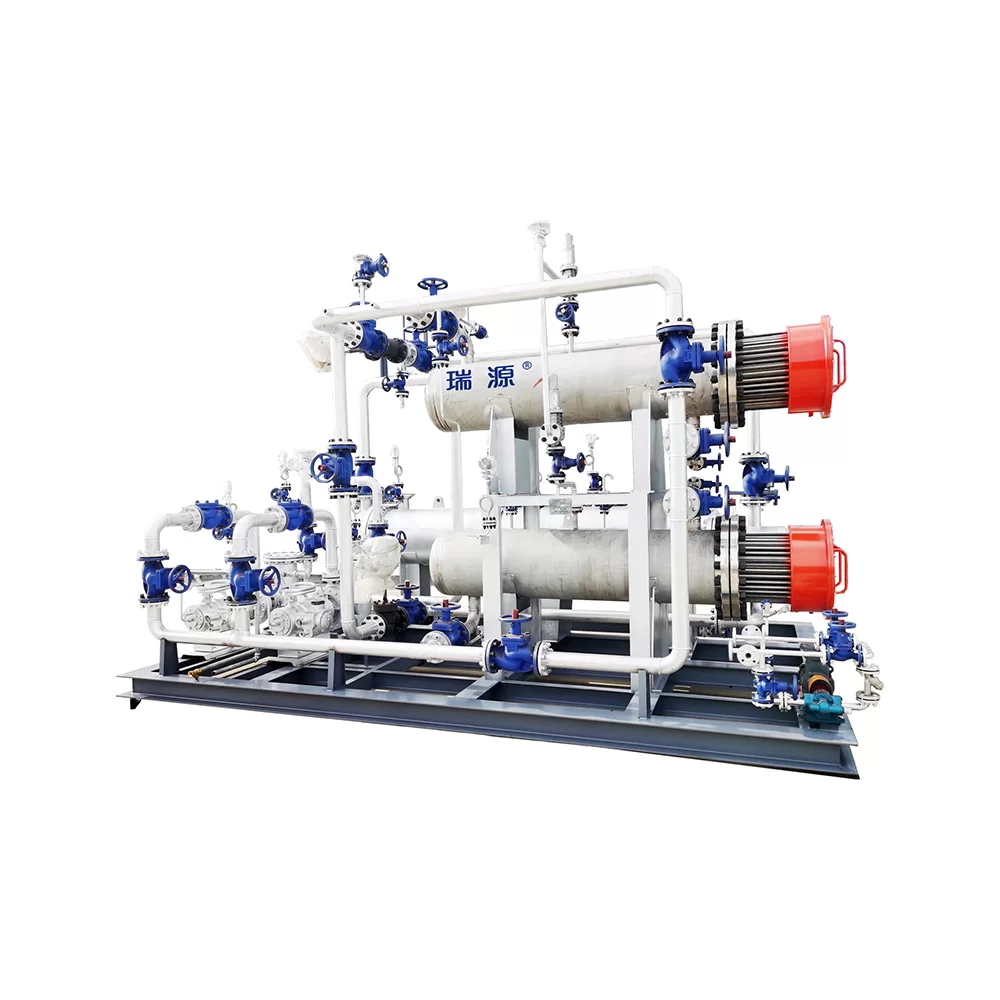

The Thermal Oil Heating System TCU is a compact, closed-loop temperature control system designed for industrial processes requiring precise and responsive heating and cooling.
This system is ideal for batch processes such as chemical reactor temperature control, pharmaceutical synthesis, plastic extrusion, and pilot plant operations where maintaining exact temperature conditions is critical to product quality.
PID controller achieves ±1°C accuracy across the full operating range.
Rapid switching between heating and cooling modes minimizes process waiting time.
Operates from ambient up to 350°C (400°C available with synthetic thermal fluid).
Digital display with real-time temperature readout and auto-tuning capabilities.
Complete over-temperature, over-pressure, low-flow, and sensor failure alarms.
Factory pre-assembled for easy installation and plug-and-play operation.
The TCU circulates thermal oil through the user's equipment jacket or internal coil. When heating is required, electric heating elements raise the oil temperature. When cooling is needed, an integrated cooling circuit (water or air-cooled) rapidly removes excess heat.
A motorized three-way control valve smoothly switches between heating and cooling modes, while a PID controller continuously adjusts output to maintain the set point with high accuracy.
Each Electric TCU undergoes rigorous factory testing before shipment to ensure maximum reliability:
