Electric Pipe Heater Factory in China | Industrial Heating Systems Suppliers

Searching for reliable China suppliers? Our factory provides high-efficiency electric pipe heaters to pre-heat heavy oil and asphalt, reducing energy costs and viscosity for seamless industrial flow.

Send Inquiry

Product Description

The Electric Pipe Heater is a professional-grade, high-performance pre-heating solution specifically engineered for seamless integration into industrial pipelines. By strategically installing the system immediately before critical components such as burners, pumps, or storage tanks, it effectively manages high-viscosity fluids—including heavy oil, asphalt, and fuel oil—ensuring they reach the optimal temperature for efficient flow and processing.

Unlike conventional heating methods, this system employs a dynamic flow-through heating mechanism that eliminates the need to heat massive storage volumes. This targeted approach significantly reduces operational energy costs while ensuring superior pumpability and finer atomization for combustion processes, combining robust industrial materials with precision electronic controls for maximum reliability.

Detailed Parameters

Protective Sheath	Stainless Steel (Corrosion & Oxidation Resistant)	Resistance Wire	Fe-Cr-Al or Ni-Cr High-Temperature Alloy
Insulation Material	High-Pressure Compacted Magnesium Oxide (MgO)	Temperature Control	PID / Programmable Logic Controller (PLC)
Power Regulation	SCR High Reverse-Voltage Thyristor Module	Temperature Stability	Precision Maintenance within ±1–2°C
Sensor Input	Thermocouple (K, J) or RTD (PT100)	Safety Mechanism	Independent High-Limit Safety Cutout
Connection Type	Standard Threaded or Flanged Pipeline Mounts	Application Fluids	Heavy Oil, Asphalt, Fuel Oil

Key Advantages

Maximum Energy Efficiency

Heats fluid only during active flow, eliminating the massive energy waste associated with heating stagnant storage tanks.

Optimized Fluid Dynamics

Rapidly reduces the viscosity of asphalt and heavy oils, facilitating easier pumping and enhanced combustion atomization.

Ultra-Precise Control

Integrated SCR and digital controllers maintain strict temperature set points regardless of flow rate fluctuations.

Industrial-Grade Safety

Features independent over-temperature protection and high-dielectric MgO insulation for total electrical isolation.

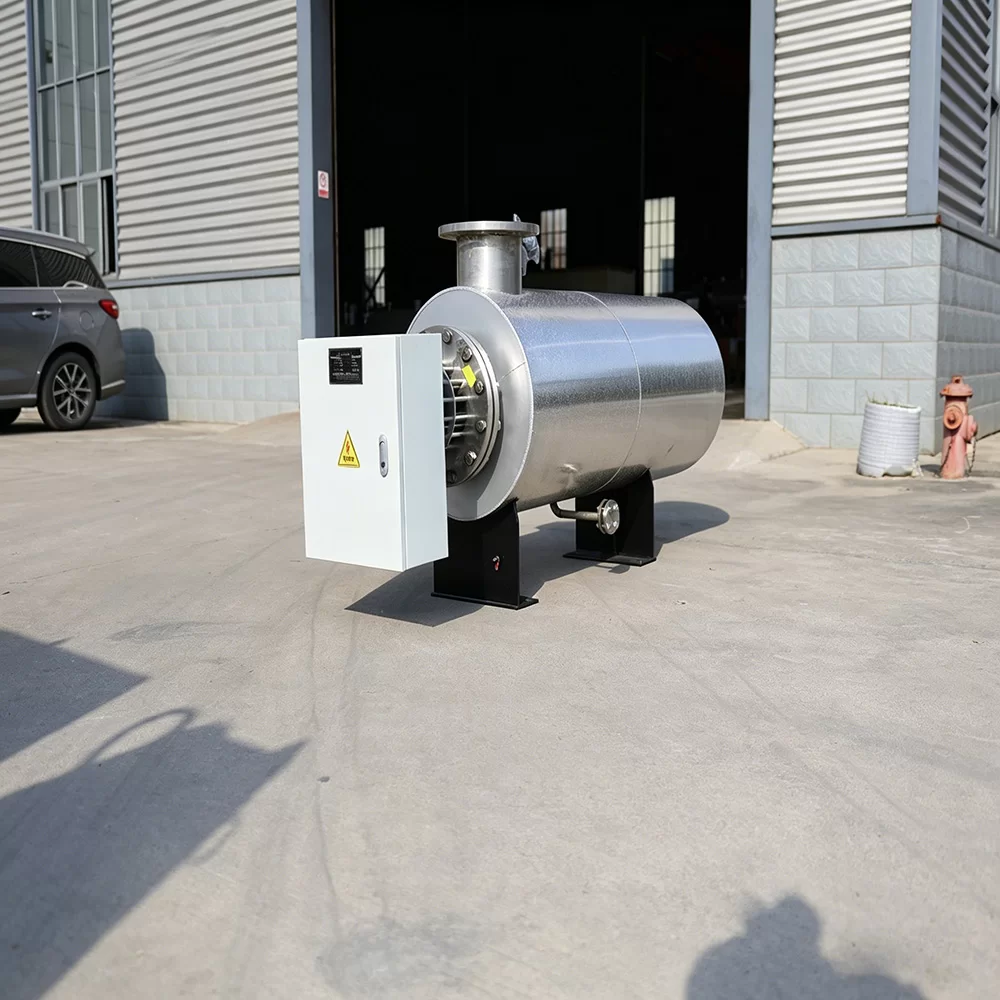

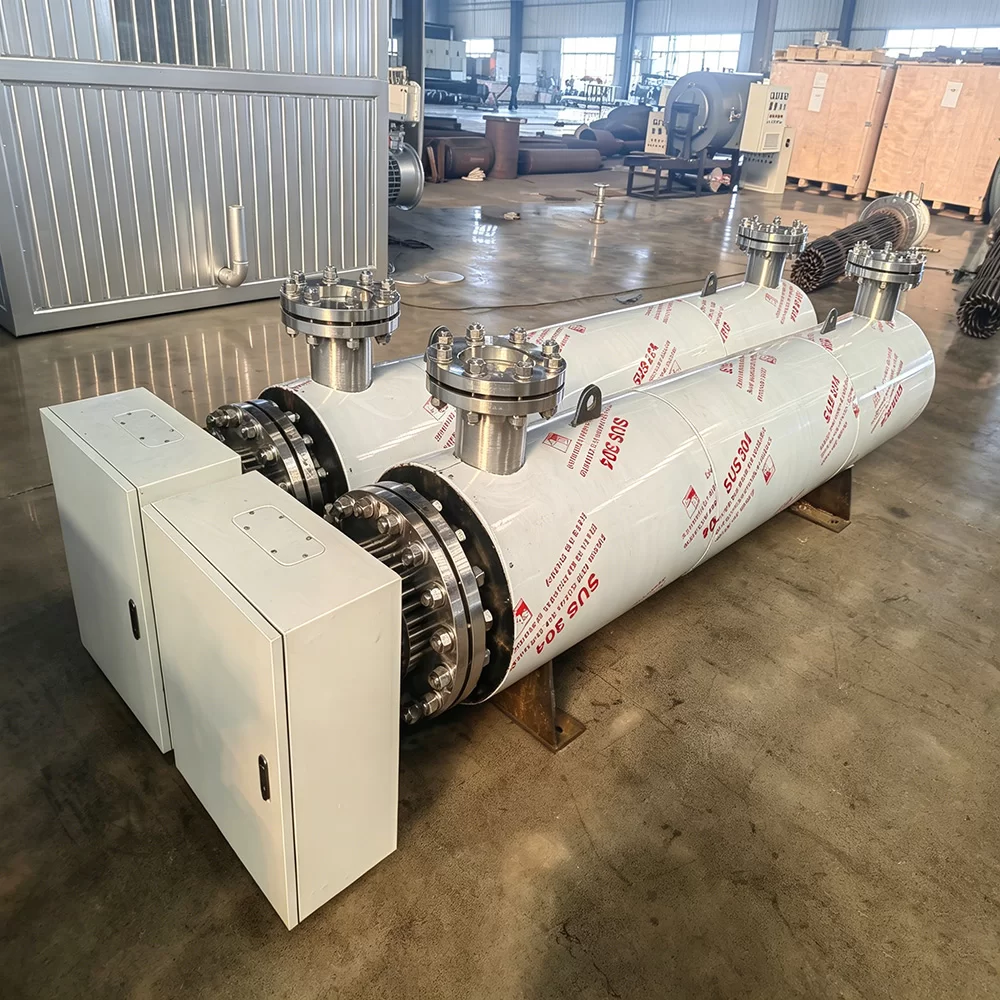

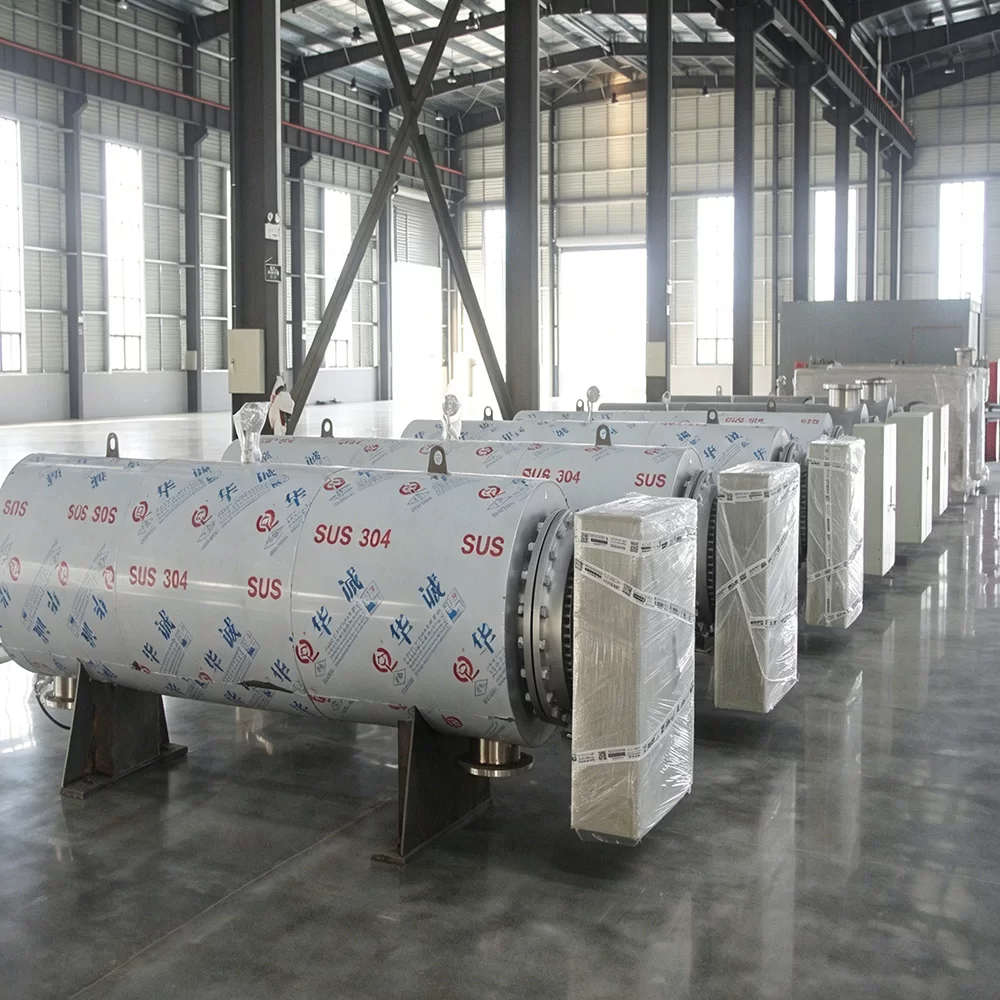

Product Gallery

Management & Design

PID Regulation

Advanced PID algorithms ensure the fluid temperature remains constant despite varying intake speeds.

Safety Monitoring

Continuous sensor feedback loops coupled with manual reset safety cutouts to prevent critical overheating.

Design Modularization

Separate heating body and control system design for easier maintenance and scalable installation.

Investment Return Comparison

Comparison Feature	Traditional Tank Heating	Electric Pipe Heating
Energy Consumption	High (Continuous Heating)	Low (On-Demand Heating)
Heat-up Time	Slow (Entire Volume)	Instantaneous (Flow-through)
Temperature Control	Imprecise/Variable	Precise (±1–2°C)
Installation Space	Large Footprint	Compact Pipeline Integration

Frequently Asked Questions

How does the pipe heater reduce energy costs?

Unlike traditional systems that heat entire storage tanks, this heater only applies energy to the fluid as it flows toward the processing point, eliminating energy loss from heating stagnant volumes.

What materials are used to prevent corrosion?

We utilize high-grade stainless steel for the protective sheath, specifically chosen for its superior resistance to oxidation and corrosion caused by fuel oil byproducts.

Can it handle very high viscosity asphalt?

Yes, the system is engineered specifically to reduce the viscosity of asphalt and heavy oils, making them easier to pump and improving atomization for burner efficiency.

What happens if the fluid flow stops unexpectedly?

The system is equipped with an independent high-limit safety cutout and precision temperature sensors that automatically shut down the power to prevent overheating during no-flow conditions.

How precise is the temperature regulation?

By combining PID digital controllers with SCR power regulators, the system maintains extremely stable temperatures, typically within ±1–2°C of the target set point.

Is installation complex for existing pipelines?

No, the heaters feature standard threaded or flanged connections, allowing them to be integrated directly into existing pipe frameworks with minimal downtime.
