Vertical Vacuum Cleaning Furnace for Polymer Removal China Factory and Suppliers

Searching for trusted China suppliers? Our factory offers a high-precision Vertical Vacuum Cleaning Furnace that eliminates polymer residues using oxygen-free pyrolysis, ensuring zero deformation and metallurgical integrity for industrial components.

Send Inquiry

Product Description

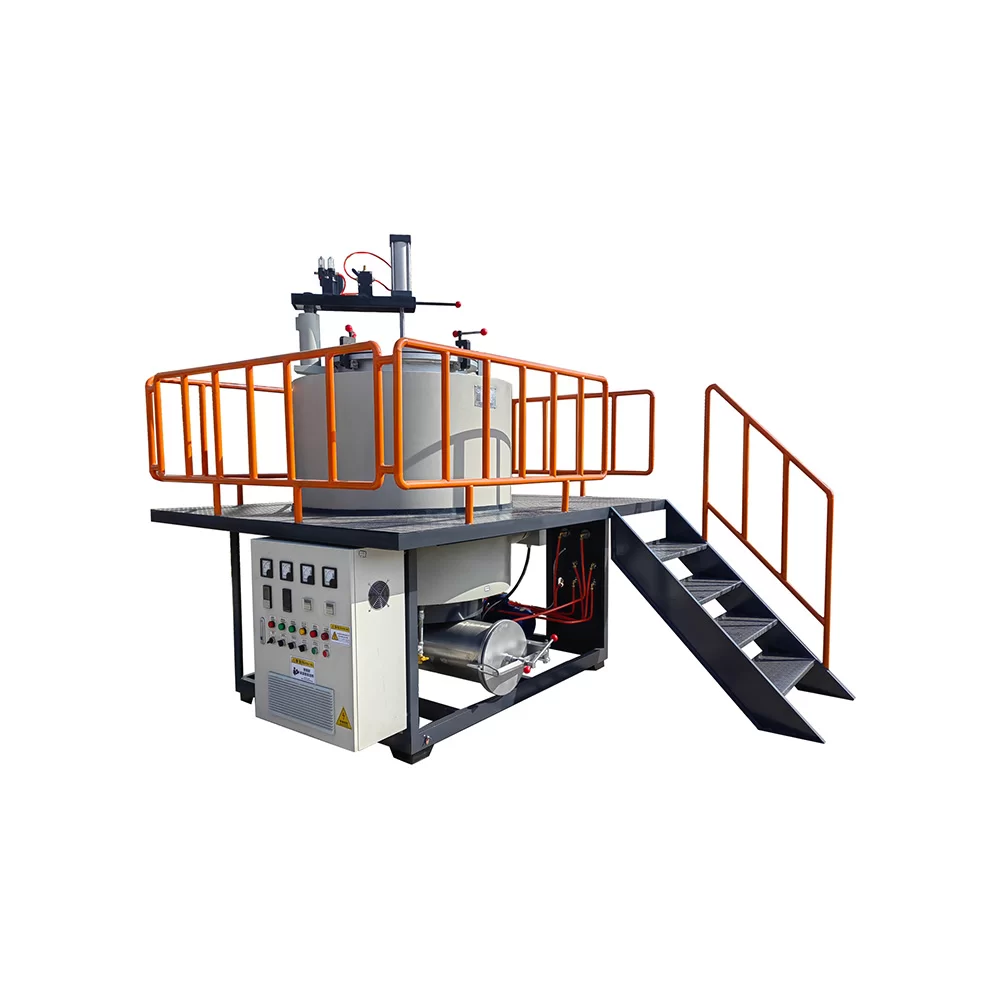

The RYAN Vertical Vacuum Cleaning Furnace is a high-precision industrial engineering solution specifically developed for the safe and thorough removal of stubborn polymer residues. By utilizing controlled vacuum pyrolysis in a strictly oxygen-free environment, this system efficiently eliminates PET, nylon, polypropylene, and acrylics from critical metal components without the risks of combustion or oxidation associated with traditional cleaning methods.

Engineered for maximum part integrity, the vertical configuration utilizes gravity to ensure that molten polymers flow naturally into a dedicated collection tray, preventing any secondary deposition. This advanced approach is ideal for complex industrial components such as spinnerets and extruder screws, ensuring they maintain their original metallurgical properties and dimensional accuracy while minimizing environmental impact.

Technical Parameters

Cleaning Method	Controlled Vacuum Pyrolysis	Operating Environment	Deep Vacuum (Oxygen-Free)
Supported Polymers	PET, Nylon, PP, Acrylics	Loading Orientation	Vertical Suspension
Control System	Programmable PID Controller	Temperature Profiles	Ramping, Soaking, Vacuum Profiling
Filtration System	Two-Stage Water Spray Scrubber	Emission Control	Environmental Compliance Standard
Application Scope	Spinnerets, Filter Candles, Screws	Material Protection	Anti-Warping / Anti-Oxidation

Key Advantages

Metallurgical Integrity

Eliminates open flames and localized overheating to prevent warping, softening, or micro-cracking of precision metal parts.

Gravity-Driven Flow

The vertical design ensures molten polymers flow downward, preventing re-deposition on deep or tall complex components.

Precision Pyrolysis

Advanced vacuum technology vaporizes residues without combustion for a thorough and safe cleaning cycle.

Automated PID Control

Fully programmable cycles for temperature and vacuum profiling, significantly reducing manual intervention and operator error.

Eco-Friendly Filtration

A specialized two-stage scrubber captures condensates to ensure compliance with strict environmental regulations.

Space-Saving Footprint

Vertical architecture maximizes shop floor efficiency and simplifies top-loading via crane or hoist systems.

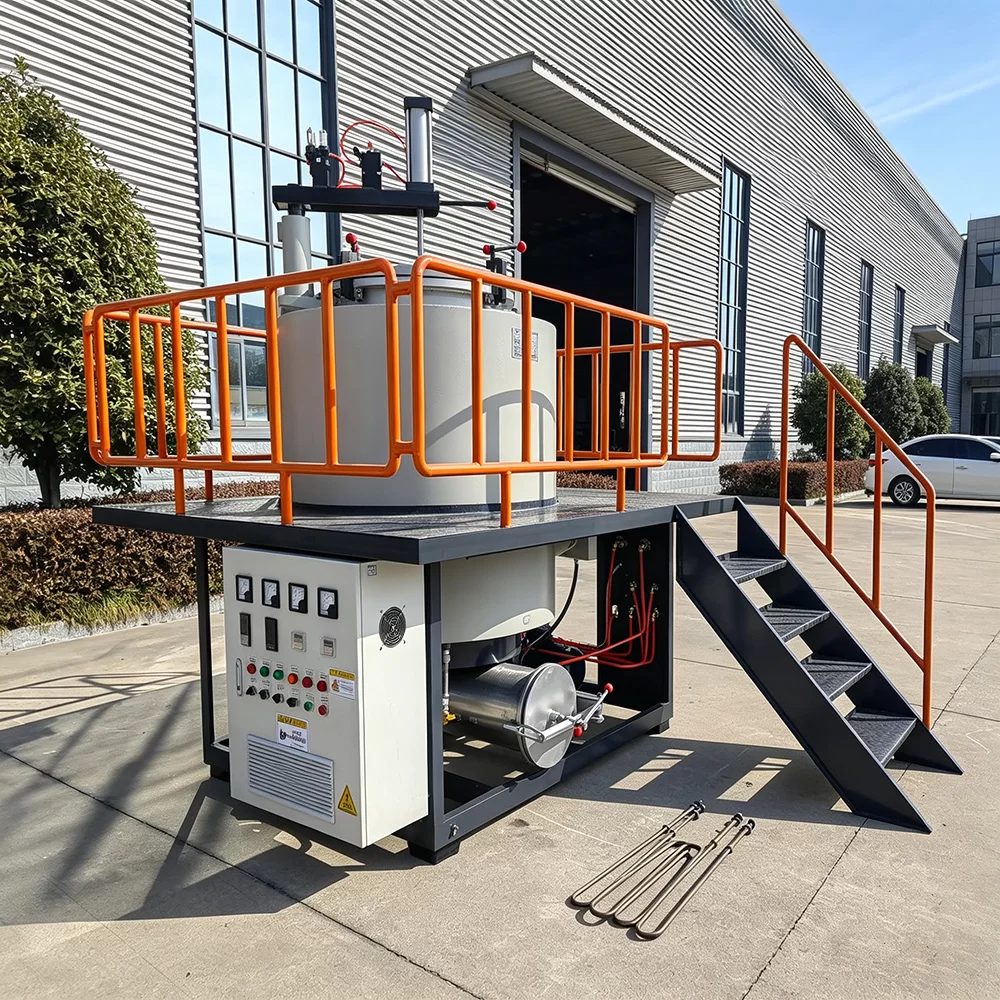

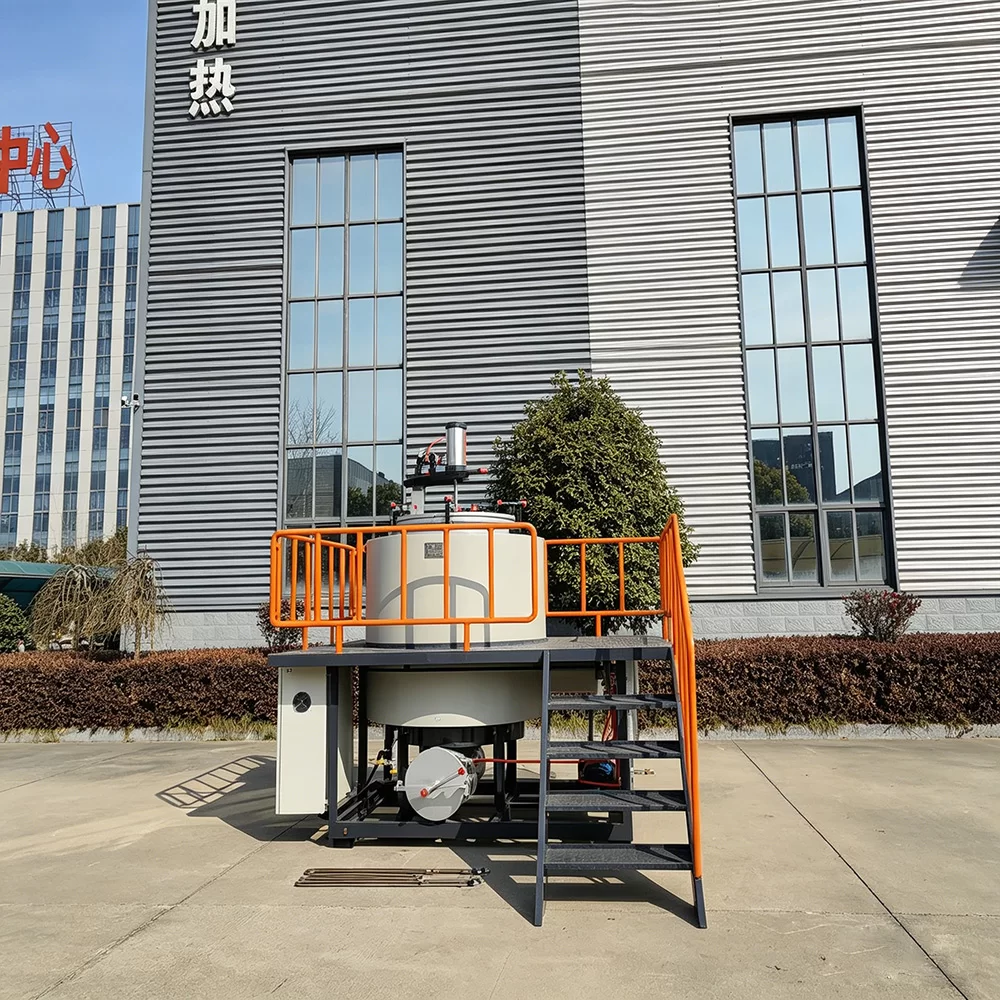

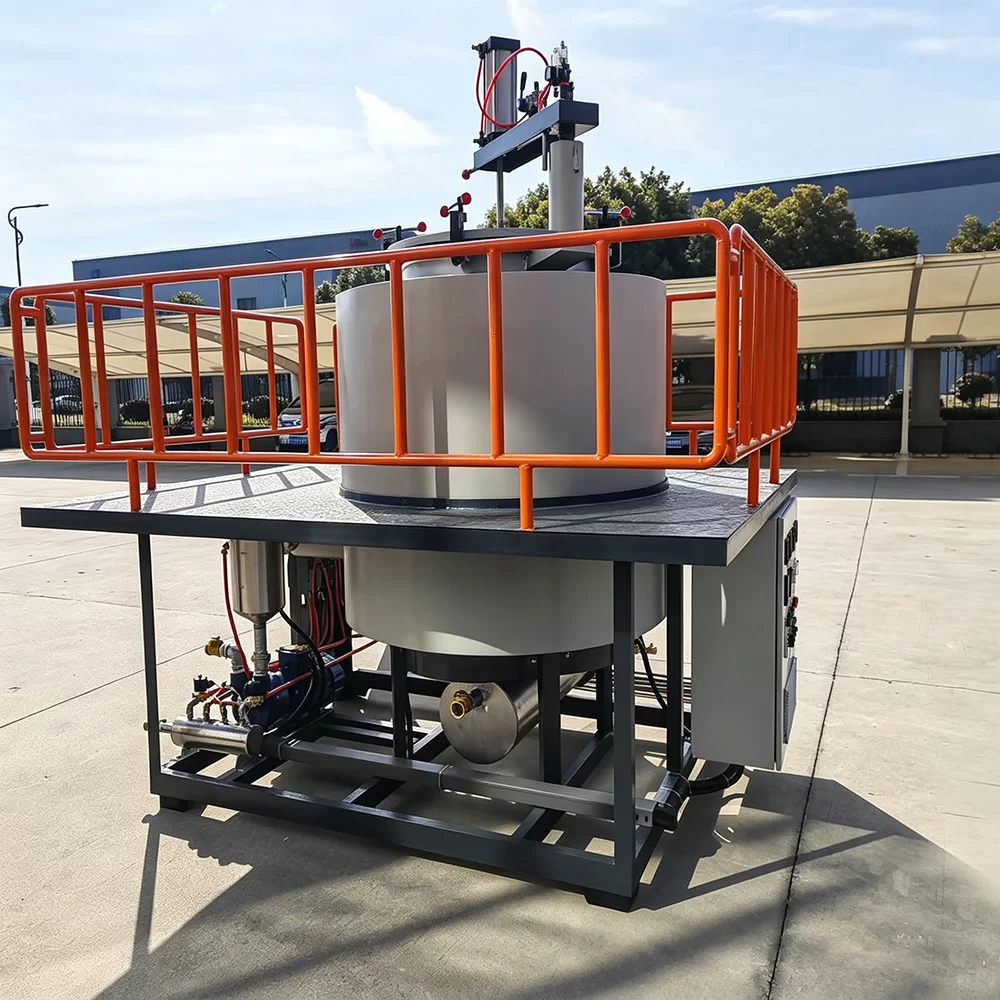

Product Gallery

Functional Platforms

Component Suspension

Vertical hanging system eliminates deformation caused by part weight during high-heat cycles.

Vacuum Profiling

Dynamic vacuum adjustment to optimize the vaporization rate of different polymer types.

Emission Monitoring

Integrated scrubber system ensuring all airborne residues are neutralized and captured.

Thermal Ramping

Precise PID ramping to prevent thermal shock and maintain metallurgical properties.

Performance Comparison

Comparison Feature	Traditional Burn-off Ovens	Vacuum Pyrolysis Furnace
Part Surface Quality	Risk of oxidation/scaling	Original finish preserved
Dimensional Stability	Possible warping/softening	Zero deformation
Environmental Impact	High smoke and emissions	Clean, scrubbed exhaust
Cleaning Thoroughness	Potential for residue baking	Complete vaporized removal
Operational Safety	Combustion risk present	Oxygen-free safe pyrolysis

Frequently Asked Questions

How does vacuum cleaning differ from traditional burn-off ovens?

Unlike burn-off ovens that use oxygen to combust polymers—which can cause oxidation and scaling—the vacuum furnace uses pyrolysis in an oxygen-free environment to melt and vaporize residues, preserving the metal's original properties.

Which types of polymers can be effectively removed?

The system is specifically engineered for high-performance removal of PET, nylon, polypropylene, and acrylics, making it ideal for fiber production and injection molding tooling.

Why is the vertical design superior for spinnerets?

The vertical orientation allows gravity to pull molten polymers downward into a collection tray, preventing the residue from re-depositing into fine holes or deep channels of the part.

Does the process affect metallurgical properties?

No. Because the process avoids open flames and localized overheating, there is no risk of warping, softening, or micro-cracking, ensuring the part maintains its original hardness and dimensions.

How is the system compliant with environmental regulations?

The furnace features a specialized two-stage water spray scrubber that captures vaporized condensates and flushes them away, significantly minimizing airborne emissions.

Can cleaning cycles be customized for different materials?

Yes. The programmable PID controls allow operators to set specific temperature ramping, soaking times, and vacuum profiles tailored to the specific polymer and metal substrate.
