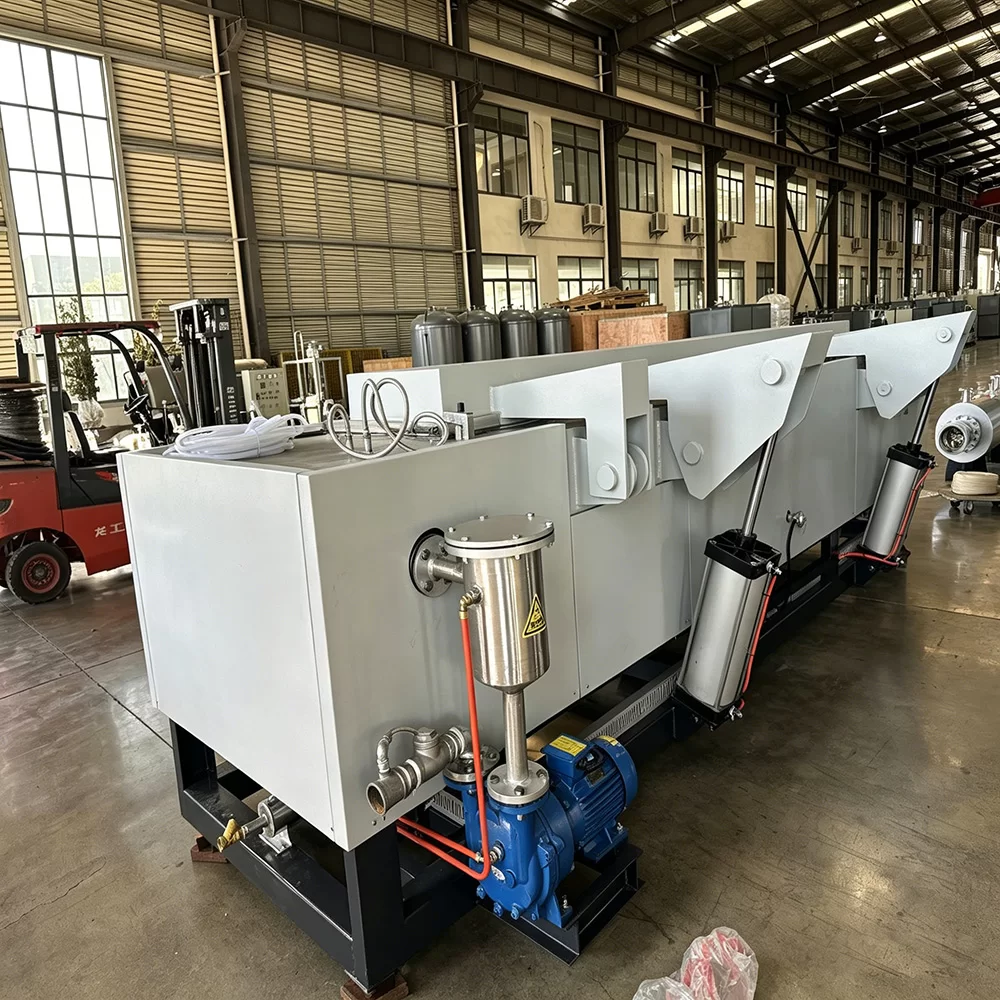

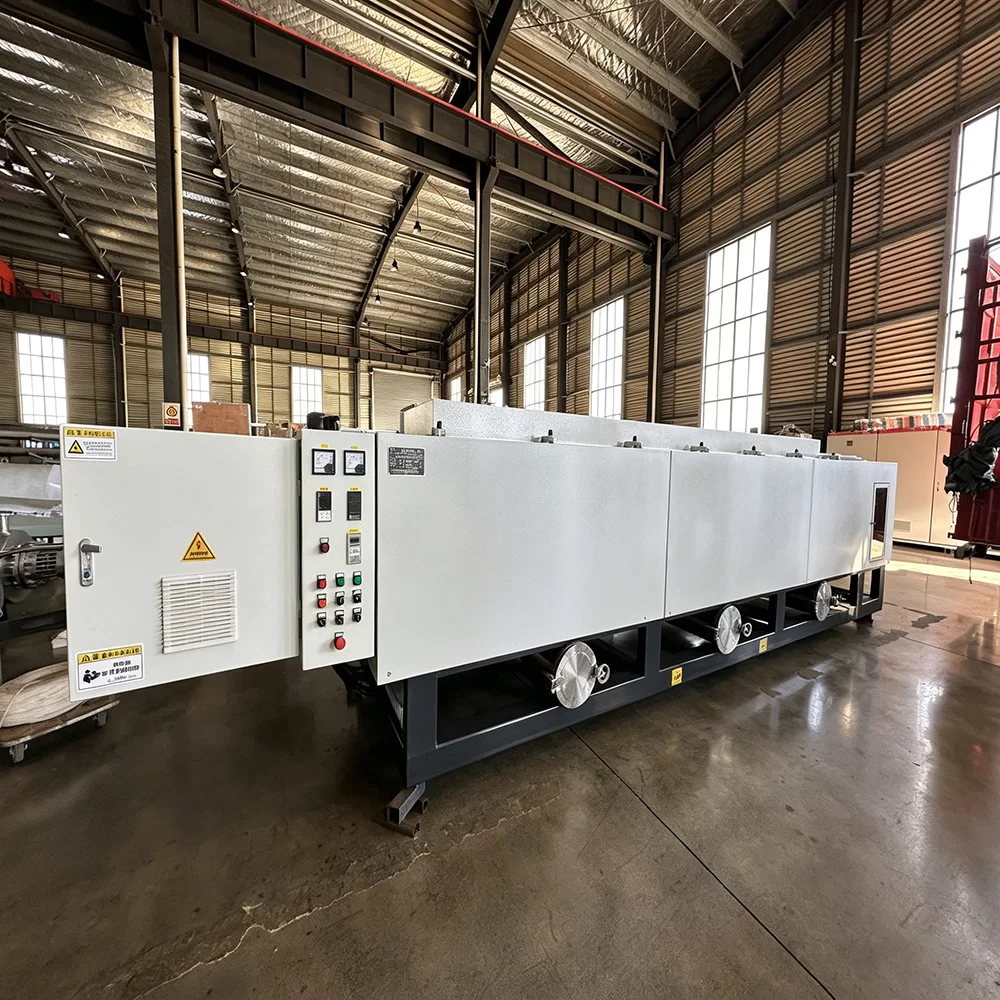

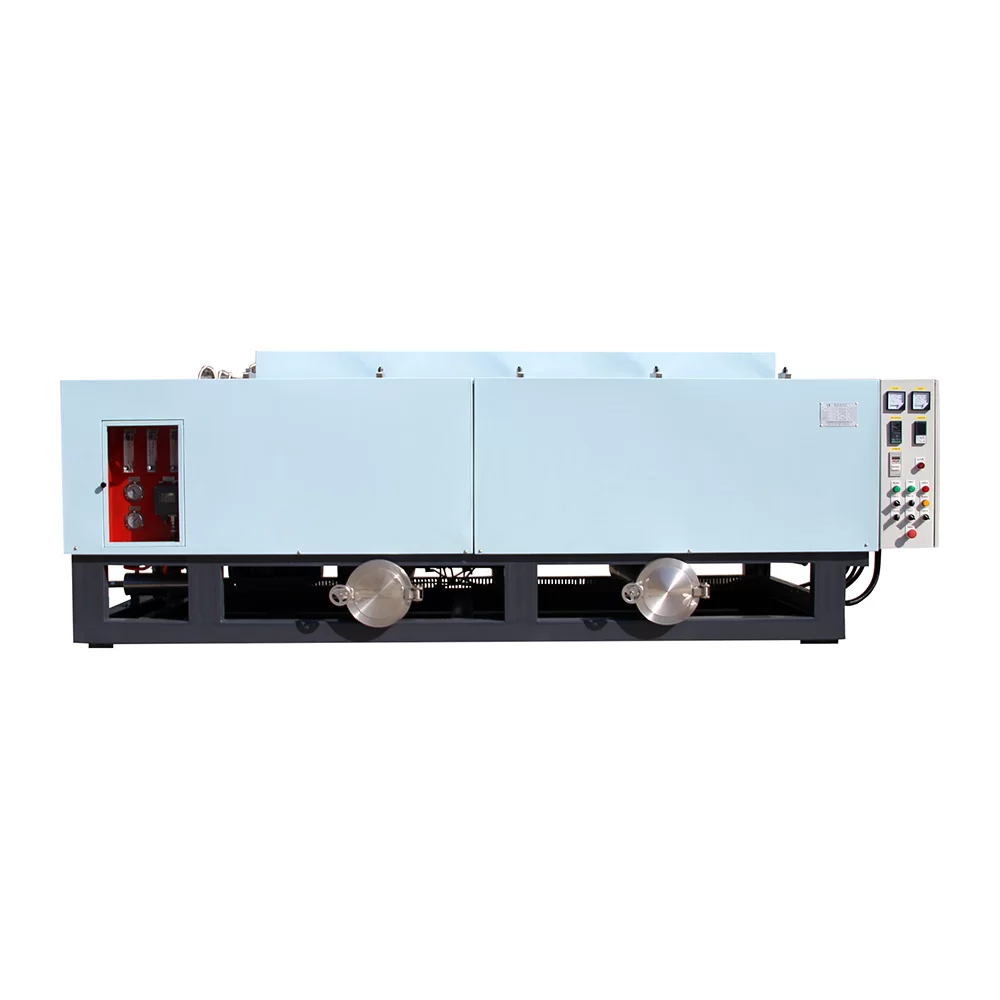

The Chamber Vacuum Cleaning Furnace is a high-precision, industrial-grade system engineered for the professional removal of stubborn polymer residues from critical metal components. By replacing risky open-flame burn-off methods with a deep vacuum environment, this system eliminates oxygen to prevent combustion, utilizing controlled pyrolysis to melt and vaporize materials such as PET, nylon, polypropylene, acrylics, and polyurethane without compromising the substrate.
Designed for maximum versatility and industrial reliability, the chamber configuration allows for the simultaneous processing of multiple small parts or complex single assemblies. From fine-hole spinnerets and filter discs to extruder screws and hot runner nozzles, the system delivers consistent, damage-free results, combining an integrated water-scrubbed emission system with a user-friendly PID control for optimal operational safety and environmental compliance.
| Max Temperature | 450°C – 550°C (Typical for pyrolysis) | Chamber Volume | 50L – 500L (Custom sizes available) |
|---|---|---|---|
| Heating Elements | Stainless steel sheathed or ceramic infrared | Control System | PID programmable, 30+ segments |
| Power Supply | 220V / 380V, 50/60Hz, 3-phase | Environment | Deep Vacuum (Oxygen-Free) |
| Process Method | Controlled Pyrolysis & Vaporization | Cleaning Target | Polymer Residues (PET, Nylon, PP, etc.) |
| Emission Control | Water-scrubbed Neutralization | Applicable Parts | Spinnerets, Filters, Extruder Screws |
Deep vacuum operation eliminates combustion risks associated with traditional open-flame ovens.
Flexible chamber design accommodates diverse part types, sizes, and complex industrial assemblies.
Precise pyrolysis ensures total polymer removal without damaging delicate metal surfaces or holes.
Programmable 30+ segment control allows for exact temperature ramping and soaking cycles.
Integrated two-stage filtration and water-scrubbing for fully neutralized emissions.
Gravity-assisted draining system optimizes the rapid removal of melted polymer residues.
Load multiple small components simultaneously to maximize daily production throughput.
Adjust pyrolysis parameters based on specific polymer types for optimal cleaning efficiency.
Programmable segments reduce operator intervention and eliminate human error during heating.
Ensure strict environmental compliance via the integrated water-scrubbed filtration system.
Manage diverse part types from spinnerets to extruder dies within a single unified system.
Simplified tracking for vacuum pump and filtration system maintenance schedules.
| Comparison Metric | Traditional Burn-off Oven | Vacuum Furnace |
|---|---|---|
| Part Integrity | Risk of oxidation/scaling | Zero oxidation / Damage-free |
| Safety Level | Open flame (High risk) | Vacuum sealed (Very safe) |
| Environmental Impact | High emissions/Smoke | Water-scrubbed/Neutralized |
| Operational Cost | High manual monitoring | Low (Automated PID control) |
| Part Versatility | Limited by tube/orientation | High (Chamber flexibility) |
