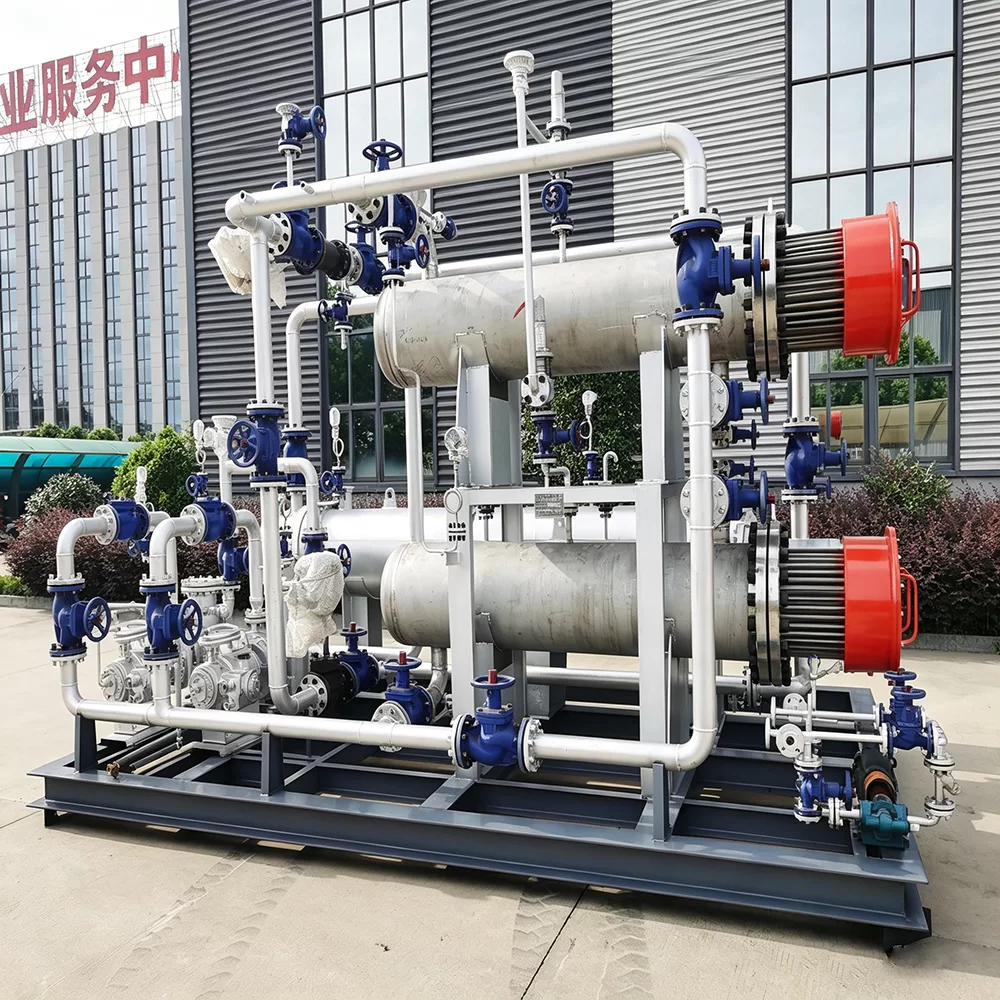

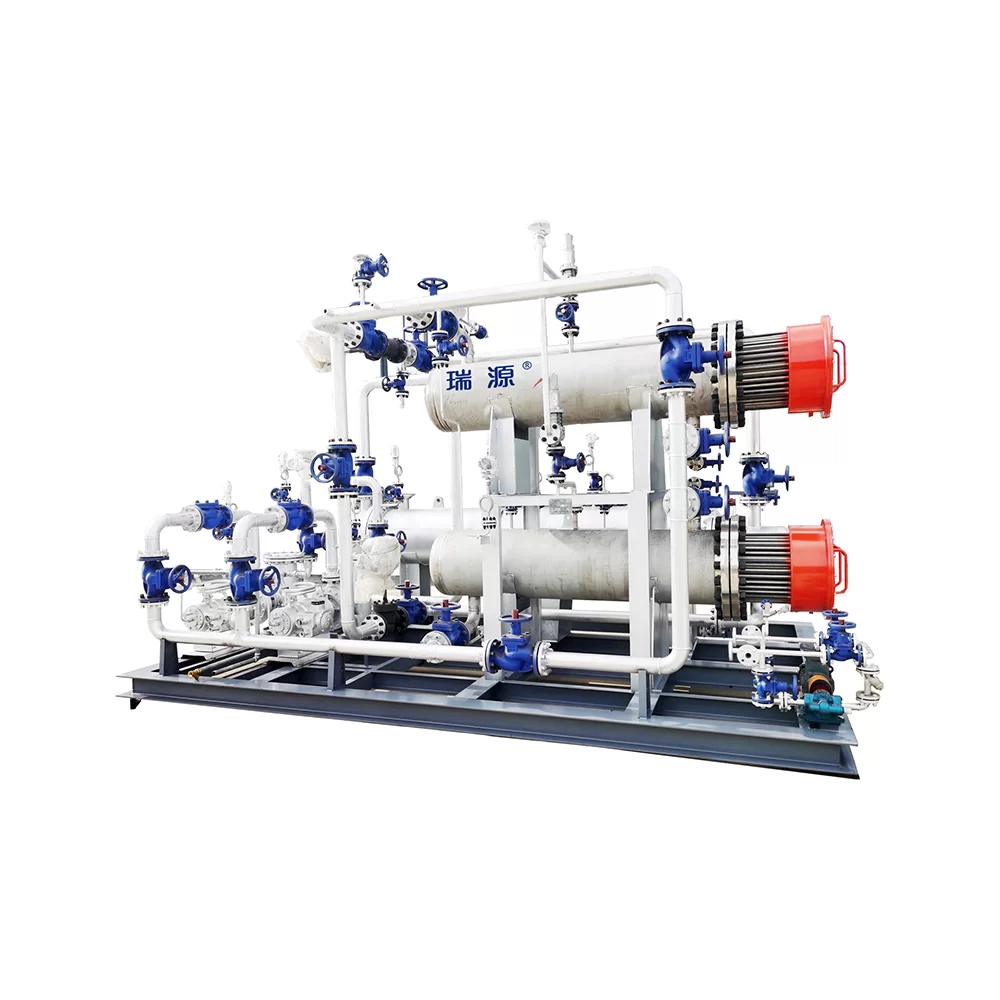

The Thermal Oil Heating System TCU is a professional-grade, closed-loop temperature control unit engineered for industrial processes that demand rigorous precision and rapid thermal response. By integrating advanced heating and cooling capabilities into a compact design, it provides a stable thermal environment essential for high-stakes applications such as pharmaceutical synthesis, chemical reactor management, and plastic extrusion.
Designed for versatility and reliability, this system ensures that your production quality remains consistent by eliminating temperature fluctuations. Whether deployed in a pilot plant or a full-scale manufacturing facility, the TCU delivers the critical balance of high-temperature capability and precise control, streamlining your operational efficiency while maximizing product yield.
| Temperature Control | ±1°C (PID Precision) | Max Operating Temp | 350°C (Standard) / 400°C (Synthetic) |
|---|---|---|---|
| Control Mode | PID Closed-Loop Control | Switching Speed | Rapid Heat/Cool Transition |
| Heating Method | High-Efficiency Electric Elements | Cooling Method | Integrated Water or Air-Cooled Circuit |
| Safety Alarms | Over-temp, Over-pressure, Low-flow | Interface | Digital Display with Auto-Tuning |
| Installation | Skid-Mounted (Plug & Play Option) | Validation | Factory Pressure & Functional Testing |
Comprehensive safety package including sensor failure alarms and over-pressure protection for risk-free operation.
Motorized three-way valves enable rapid switching between heating and cooling, reducing process downtime.
PID controllers maintain tight temperature tolerances to ensure the highest quality of chemical and pharma products.
Real-time digital readouts provide operators with instant visibility into the system's thermal status.
Capable of operating from ambient temperatures up to 400°C using specialized synthetic thermal fluids.

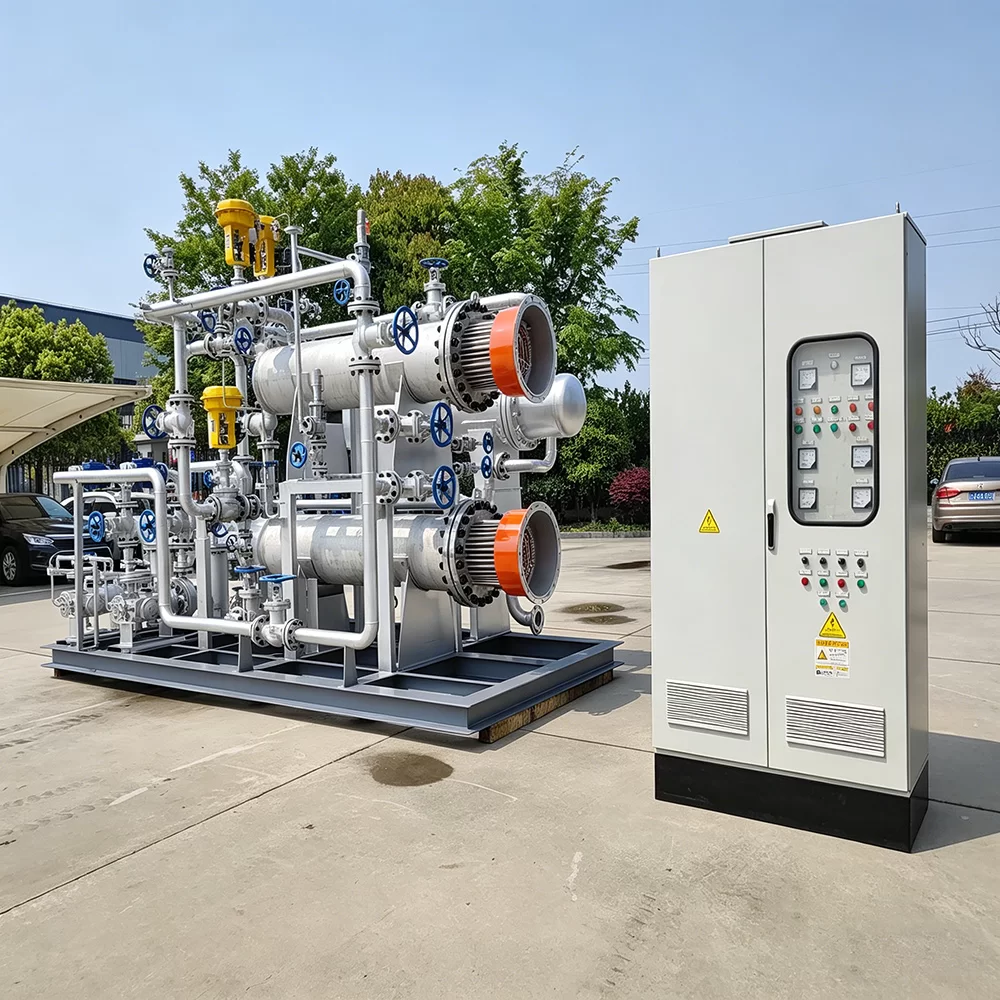

Factory pre-assembled skid-mounted options significantly shorten installation and commissioning times.
Optimized circulation of thermal oil to ensure uniform heat distribution across all jackets.
Smart calibration that automatically adjusts parameters to eliminate temperature overshoot.
Real-time alert system for low-flow or sensor failures to prevent equipment damage.
Closed-loop pressure control to maintain fluid stability during high-temperature cycles.
Seamless connectivity for pilot plants and batch reactor synchronization.
Pre-shipment functional testing including full circuit pressure verification.
| Feature | Traditional Heating | TCU System |
|---|---|---|
| Temp Accuracy | ±5°C to ±10°C | ±1°C Precision |
| Response Time | Slow/Manual Switching | Rapid Automated Transition |
| Product Yield | Variable (due to fluctuations) | Consistent & Optimized |
| Installation Time | Weeks (Field Assembly) | Days (Skid-Mounted) |
| Operational Risk | High (Manual Monitoring) | Low (Automated Safety Alarms) |
